30 Ton Trackless Heavy Load Motorized Platform Cart

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

30 Ton Trackless Heavy Load Motorized Platform Cart

Brand Name : 30 ton trackless flat transport cart

Model Number : 30 ton trackless flat transport cart

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 2000~7500 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : 30 ton trackless flat transport cart

Color : Customized

Capacity : 1-300ton

Warranty : 12 Months

Application : Industrial Filed

After-sales Service Provided : Engineers available to service machinery

Contact Now

30 ton trackless Electric Heavy Load Battery operated Motorized plateform cart
Descraption
30 ton trackless Electric Heavy Load Battery operated Motorized plateform cart , it is a trackless flat transfer car without rails, which is the special type compared with rail electric carriage. More importantly, it has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop that it exists unfixed running distance.
30 Ton Trackless Heavy Load Motorized Platform Cart
Details

30 Ton Trackless Heavy Load Motorized Platform Cart


Technical Parameter
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display

Why choose us

Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.

30 Ton Trackless Heavy Load Motorized Platform Cart

Product Tags:

heavy load motorized platform cart



trackless motorized platform cart



30 ton electric platform cart


Quality 30 Ton Trackless Heavy Load Motorized Platform Cart wholesale

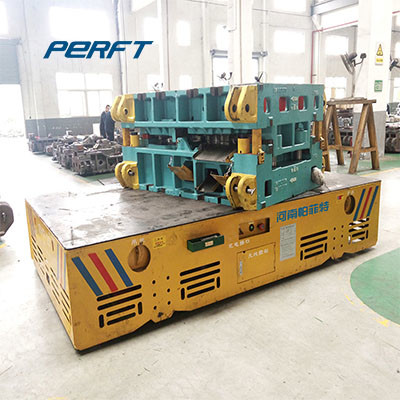

30 Ton Trackless Heavy Load Motorized Platform Cart Images
