Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer

Name: Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer
Brand: Perfte
Price: 3500 USD

Quality Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer wholesale

Brand Name : Perfte

Model Number : Material Handling Turntable

Certification : CE ISO SGS

Place of Origin : Henan China

MOQ : 1

Price : USD3500-5500/set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 40sets/week

Delivery Time : 20 work days after received balance payment

Packaging Details : Trap wooden case

Product name : 10t Material Handling Turntable 90 degree with turntable to rotate a trailer

Orignal : Henan China

Supply capability : 45 sets/week

Motor power : 5.5 Kw

Material : Q235

Wheel Base(mm) : 1500-3000

Contact Now

10t Material Handling Turntable 90 degree with turntable to rotate a trailer

The working principle is that: the guide rail is also mounted on the turntable, When the rail transport vehicle is running on the turntable, the turntable can be rotated automatically or manually until it is accurately attached to the target rail and then the transport vehicle is running on the vertical rail.
Heavy Load Industrial Electric Motor Turntable Rail Transfer Car is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.

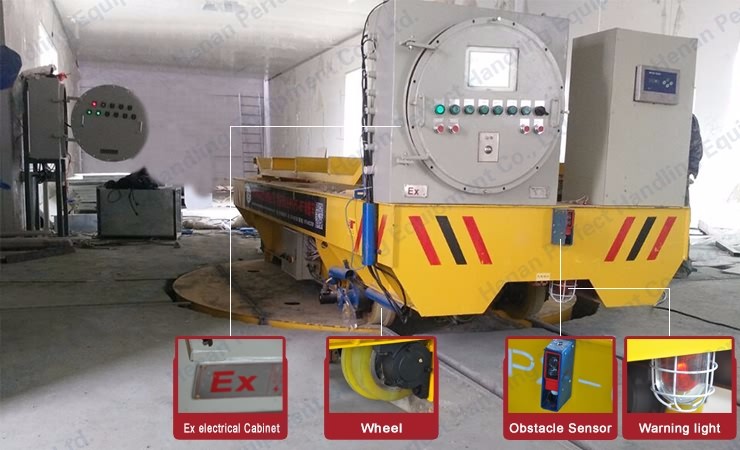

Main Components

Advantage

1.Stable rotation, accurate positioning.
2.Positioning safety requirements are high, there are mechanical and electrical two control methods for braking.
3.Adopts electric drive mode and frequency control;
4.Convenient and flexible
5.Control panel with wire or romote control.

6.turntable flat car is to rotate the gear by the motor to achieve the rotation of the turntable.

7.When the flat car is completely running on the turntable, the turntable starts to rotate to the desired angle and the connect with the ground rails completely, then the Material Handling Turntable can starts again and runs along the rails.

Technical parameters

Model		BDG-2T	BDG-10T	BDG-20T	BDG-30T	BDG-50T	BDG-63T	BDG-150T
Rated load (T)		2	10	20	30	50	63	150
Table size(mm)	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	500	550	600	650	700	800	1200
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		0.8	1.5	2.5	4	5.5	7.5	15
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100

The scheme

Application

Yellow 10 T Material Handling Turntable 90 Degree With Turntable To Rotate A Trailer
