20 Ton BQY Engine Heavy Duty Plant Trailer On Rail
The BQY series Tractor Truck is powered by battery. The 20ton Transfer cart is used as power soure which can also transport goods.The BQY series tractor truck is usually used to tow the train which need to be repaired.The BQY series Tractor Truck can run both on railways and cement ground.The BQY series Transfer Cart is available in inflammable and explosive environment.

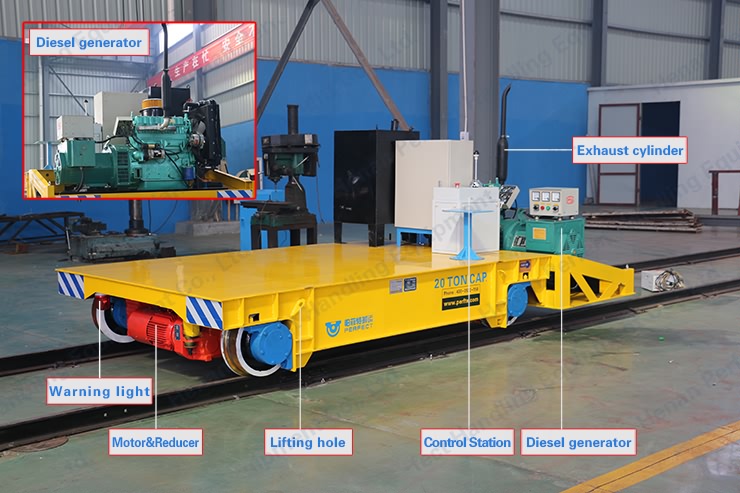

Main Components of the 20 Ton BQY Engine Heavy Duty Plant Trailer On Rail Industrial Transportation
Advantages of The 20 Ton BQY Engine Heavy Duty Plant Trailer On Rail Industrial Transportation
1.The 20ton Transfer cart is Anti-high temperature,Anti-high explosion;
2.The Tractor Truck is powered by battery;
3.With lifting holes,Transfer Cart is convenient to shipment;
4.The Transfer Car has a feature of stable start, big starting power, long lifetime;
5.The Tractor Truck can run on the C-form track or S-form track and L-form track;
6.Running distance of tractor truck is unlimited;
7.Safe and convenient operation is available for this tractor truck;
8.High using frequency for tractor truck.
Technical parameters of the 20 Ton BQY Engine Heavy Duty Plant Trailer On Rail Industrial Transportation
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
| Roated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Sunning speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(KW) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery capacity(AH) | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running time | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Max wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Max wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
The load capacity, table size, color of the high safety roll trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
Customer Visit
About Us
Founded in 2003, Our company covers an area of 30,000 square meters and annual output is 500sets motorized transfer trolleys. With oversea market extension, we enlarged our plant and purchased many equipments such as plasma CNC cutting machine, advance welding facility etc.
Our products have passed the authentication of Quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial standard JB/T61 27-92.
