Electric Heavy Duty Material Handling AGV
AGV unmanned navigation intelligent transport vehicle control system
—— Complete control solution
The Automated Guided Vehicle (AGV), also commonly known as the AGV car, is equipped with automatic guiding devices such as electromagnetic or optical, inertial navigation, etc., which can travel along a prescribed guiding path and has safety protection. Transport vehicles with various transfer functions, no need for the driver's van in industrial applications, and a rechargeable battery as the power source.
With the expansion of the application field, the types and forms of AGVs become diverse. AGVs are often classified into the following types according to the navigation method during AGV automatic driving:
Compared with electromagnetic guidance, magnetic navigation uses magnetic strips on the road surface instead of embedding metal wires under the ground to realize navigation through magnetic induction signals. Flexibility is better, it is easier to change or expand the path, and the magnetic strip is easy to lay. The navigation method is mechanically damaged by hard objects such as metal passing through the loop, which has a certain influence on navigation.
Technical Parameter
| Model | 2t | 20t | 50t | 100t | 150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Service
Our company is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those.With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years.With the high quality machine, skilled workers and experience engineers, we will supply the best transfer car,including Customized electric heavy duty material handling agv equipment for you.
| ------All customized for you |

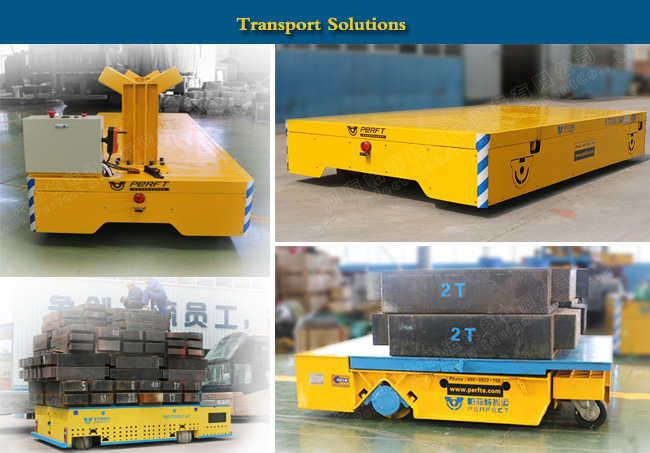

- The factory material transfer trolley can be equipped as per your requirement.
- As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
- As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
- ...
|
