50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate

Product Categories
Henan Perfect Handling Equipment Co., Ltd.
Contact Now

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate

Brand Name : battery powered flat electric transfer cart

Model Number : battery powered flat electric transfer cart

Certification : CE ISO SGS

Place of Origin : China(Mainland)

MOQ : 1 set

Price : USD 2800~7500SET

Supply Ability : 100sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : battery powered flat electric transfer cart

Application : Transfer Materials

Capacity : 50T(Customized)

Running speed : 20/min

Certificates : CE ISO SGS

Table Size : Customized

Height : Customized

after-sales Service Provided : Engineers available to service machinery

Contact Now

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate

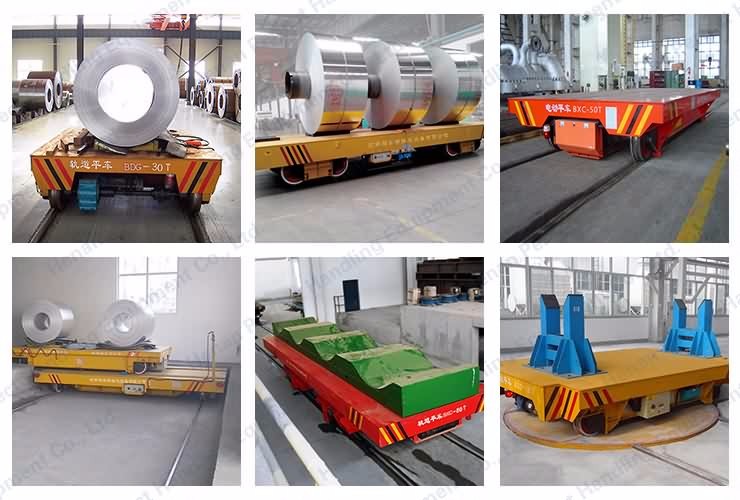

This battery powered flat electric transfer cart is usually used at ship yard, plant and factory, certain production line. The coil handling battery cart could get power from outside or from the battery. The battery powered flat electric transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The battery powered flat electric transfer cart construction is based on our world renowned die coil handling battery powered flat electric transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our The battery powered flat electric transfer cartis available in a number of configurations specifically designed to suit the needs of our customers.

Site map for customer use

Site map for customer useSite map for customer useail Trailer Rail Trailer

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate
Technical Parameter of battery powered flat electric transfer cart
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate
