Brief Introduction
The trackless tractor is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This trackless tractor has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.
Main Features
- The heavy material carry trackless tractor is anti-high temperature,anti-high explosion;
- he heavy material carry trackless tractor doesn't need railway;
- With lifting holes, it is convenient to shipment;
- The heavy material carry trackless tractor has features of stable start, big starting power, long lifetime;
- The heavy material carry trackless tractor can spin around 360 degrees;
- Running distance is unlimited;
- Safe and convenient operation is available ;
- High using frequency .
Technical Parameter of trackless tractor
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical |
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture |
| Running Speed (m/min) | 0-15 | 0-12 |
| Brake Principle | Electric magnetic brake |
| Operation Method | Raido Remote Control |
| Battery Maintainance | Free of maintainance |
| Charger's Installation | Installed on cart | Split-type |
| Cart Color | Customized |
| Charger's Function | Automatically cut off the power when the battery is fully charged |
| Radar Control | 3-0.3 m, Automatic stop for obstacles |
| Warning Equipment | Horn and Flash Light |
| Other Functions | Turning light, night light and power display |

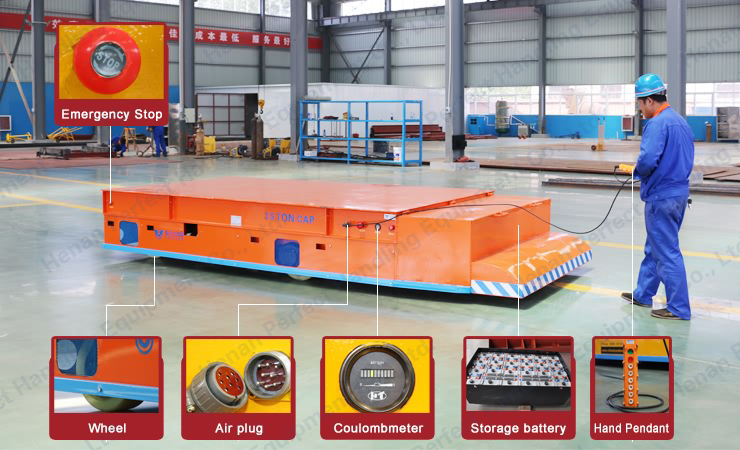

Main Components
The die transfer cart industry heavy material carry trackless tractor consist of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and so on. It can turn around on the cement and concrete floor.
All the trackless tractors are equipped with warning alarm and security detection apparatus, and the tractor would stop immediately if there was any obstacle or pedestrian in the running path of the trackless tractor. Also, we will provide intelligent automatic rapid charger with the battery powered trackless tractor. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions too.
Company Strength
Our factory is located in Xinxiang City, Henan province, where the trackless tractor are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high quality machine, skilled workers and experience engineers, we will supply the best trackless tractor for you.
1. Q: What is the size and load of this trackless tractor ?
A:The size and load of our this trackless tractor is customized design according to your requirement.
2. Q: How should I operate this trackless tractor ?
A: The trackless tractor is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this trackless tractor ?
A: Yes, there are electromagnetic brakes on the trackless tractor. When the trackless tractor is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the trackless tractor, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the trackless tractor and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the trackless tractor to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special trackless tractor, such as hydraulic lifting trackless tractor, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
